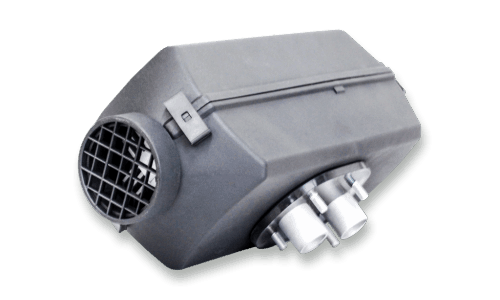

The AUTOTERM 2D is the most compact heater model in the product line.
The AUTOTERM 2D heater is intended for use in any kind of means of land transport (for example, low truck cabs, commercial vehicle cabs or cargo compartment), as well as on boats (up to 33 feet/10 m long) and on the premises.
Capacity of the air heater AUTOTERM 2D is between 0.8 kW and 2 kW, and it is capable to heat up 75 m3 of air hourly, furthermore, maintaining excellent economy and consuming between 0.1 l and 0.24 l diesel per hour.
Heater AUTOTERM 2D is being offered in two modifications, intended for operation in power networks with voltage of 12V and 24V.
The main advantages of AUTOTERM heaters are stable operation at very low temperatures, inductive (brushless) electric motors designed for uninterrupted operation for 12,000 hours, as well as low fuel consumption and reasonable price. Our heaters have proved their excellent quality, working in aggressive environments, such as, for example, the marine environment and careers. Our heaters have a single European guarantee and civil liability is insured.
Heater PLANAR 2D may be controlled both by the standard control panel (PU-5) and standard alarm system (provided there is a free control channel), as well as by modem (available separately), supporting control via call/sms, and by a smartphone application, which is available both in the operating system Android, and IOS (application Autoterm Control).

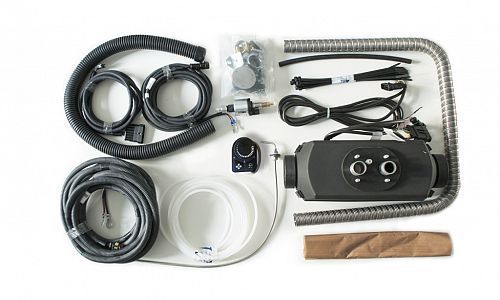

Just like all the other Autoterm heaters, the heater PLANAR 2D is also delivered with full assembly set including: air supply pipe with 80 cm long silencer, silencer of exhaust gases, 1 m long discharge pipe of exhaust gases with 30 cm long insulation, 5.5 meters long polyamide fuel pipe, fuel collector in the fuel tank, digital control panel (PU-5), cables, rings, bolts etc.
|Air heater AUTOTERM-2D-12-TM-3995||Modes|
|Heat power, kW||2,0||0,8|
|Fuel consumption, l/h||0,24||0,1|
|Rated power consumption, W||29||10|
|Heated air volume, m3/h||75||34|
|Fuel||diesel fuel as per GOST 305|
|Rated voltage, V||12|
|Control mode||Manual, standard remote control, modem|
- Air Heating Operating manual
- Autoterm Air Heating Installation instructions
- Autoterm Air Heating Repair manual
- Autoterm Air Heating Control panel PU-5 operating manual
- Autoterm Air Heating Control panel PU-16 / PU-22 operating manual
- Autoterm Air Heating Control panel PU-27 operating manual
- Autoterm 2D Spare parts catalogue
